UV Booth

UV Inspection & Rework Booth
GEN3

The UV Booth is designed to assist in the inspection of samples that require UV light to enhance discrepancies, contamination or process issues.

UV light helps in identifying counterfeit products and ensuring the authenticity of materials and components. It can be used to detect surface and sub-surface defects in materials where fluorescent dyes are applied to the material, and UV light reveals cracks and faults.

Applications include;

  • Defect Detection: UV light is used in fluorescent dye penetrant inspection to detect cracks and defects in electronic components and assemblies. This non-destructive testing method ensures high-quality standards.
  • Cleanliness Verification: UV light helps verify the cleanliness of components and PCBs by revealing contamination invisible to the naked eye.
  • Fluorescent Penetrant Inspection (FPI): UV light is used to detect surface and sub-surface defects in materials. Fluorescent dyes are applied to the material, and UV light reveals cracks and faults.
  • Counterfeit Detection: UV light helps in identifying counterfeit products and ensuring the authenticity of materials and components.

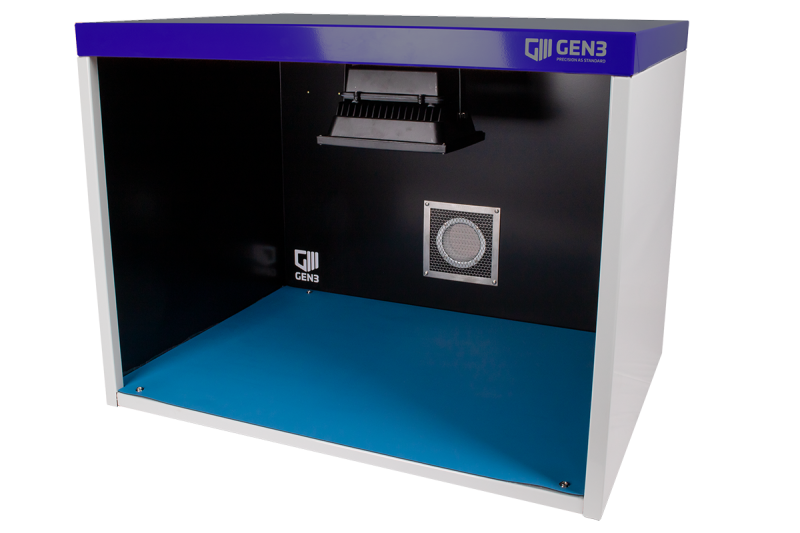

UV Booth
Key Features
  • Aluminium Chassis
  • Dimensions (mm): 820L x 600W x  620H
  • Designed for bench top applications
  • Anti static work mat fitted
  • Solvent resistant protective paint
  • UV protective goggles supplied
  • On/Off switch with IEC connecter & 2M power cord
UV Lamp Specifications
  • Power Supply – 100-240V AC, 50/60Hz
  • Power consumption – 30W
  • Protection grade – IP65
  • Min distance from flammable surfaces – 50cm
  • Min distance to lighted object – 10cm
  • LED type – 30W Array
  • Number of LED’s - 1
  • LED Beam angle – 120°
  • UV Wavelength – 390nm Peak
Technical Specification
Dimensions
Overall Dimensions:
820L x 600W x 620H
Dimensions
UV Lamp Dimensions:
285 x 235 x 145
Weight
Weight:
2.7kg
Temperature
Temperature:
Max Ambient Temperature: 35°C
Max Housing Temperature: 50°C
